It all started with what was supposed to be a “bucket list event”…and turned into an obsession
We carry the full line from Ultimate Performance, Ground Control, Superpro, Whiteline, iAbed Industries, Wavetrac and many more. If you don’t see what you want please reach out to us.
Congratulations to Hank Iroz and Iroz Motorsport for being the first 7 second RS3,
running a 1.27 60’ time on the 529Innovations / Ultimate Performance suspension.
Suspension, Drivetrain and Engine Hardware
For those looking for better bushings for their Front Wheel Drive MQB car and not wanting to upgrade to a spherical bearing we offer Powerflex bushings. Please not that these are not recommended for hard core track use unless class rules prohibit using a spherical bearing. If you compete with your car we recommend going with theJXB Spherical setup that can be found here.
Powerflex's special polyurethane is an advanced material with unique properties. Upgrade your Audi with high performance bushings, bushings that won't cause vibration or noise and include a Lifetime Warranty!
These are not your typical “off the shelf damper”, they are a clean sheet design (not “repurposed” or a carry over from another Audi or VW platform).
The Ultimate Performance dampers are professional motorsport dampers designed and tested specifically for the 8V RS3, 8S TT/TTS/TTRS and other MQB platforms that can be 100% street friendly. See the Damper FAQ for additional details.
Features Include
Monotube design with high pressure nitrogen pre-charge
Optimized adjustability for street, strip and track use:
Front strut adjusters for low speed rebound/compression (high speed rebound adjusters added for road course use or high HP drag/roll race vehicles that see street use)
Rear shocks feature independent compression and rebound adjusters (street version configured with a single adjuster for compression and rebound)
Custom valving and configurations are available, please call for details
Standard spring rates per application
Track/high HP and Drag use configuration: 450lb/in front 500 lb/in rear
Street use 450lb/in front 450 lb/in rear.
Custom spring rates and valving available at time of order for no additional charge.
Multiple Camber Plate options.
Adjustable Ground Control camber plates for max camber gain (up to 3 degrees)
SuperPro fixed camber plates provide up to 1 degree of camber gain
Whiteline fixed camber plates provide up to 1 degree of camber gain and 0.5 degrees caster gain
Modified Stock strut tops (stock camber and caster)
Ride height range from stock to over 1.5” drop.
Rear dampers are designed to be mounted “body up” and re-use the existing factory mount.
Genuine Audi factory mounts are available below or on our accessories page (will open in a new window)
If your vehicle has factory Magnetic Ride you will require cancellers. We recommend iSWEEP ECS Cancellers which are available below or on our accessories page (will open in a new window).
If you desire a custom configuration including spring rates, custom valving for circuit, autocross drag racing, or other options please contact 529 innovations for recommendations.
For those looking for better bushings and not wanting to upgrade to a spherical bearing we offer Powerflex bushings. Please not that these are not recommended for hard core track use unless class rules prohibit using a spherical bearing. If you compete with your car we recommend going with the JXB Spherical setup that can be found here.
Powerflex's special polyurethane is an advanced material with unique properties. Upgrade your Audi with high performance bushings, bushings that won't cause vibration or noise and include a Lifetime Warranty!
The Ultimate Performance dampers are professional motorsport dampers designed and tested specifically for the 8V RS3, 8S TT/TTS/TTRS. Also adaptable to fit all of the MQB platforms. This system is specifically tuned for Drag and Roll Racing use.
Why the 529 Rear Drag System (529RDS)?
On hard hitting drag/roll racing cars, the combination of both spring rate and dampening are essential to control that hit and optimize traction. The 529RDS uses a high pressure, monotube shock with proprietary internal valving, paired with a matched rate spring system. This system also delivers a range of adjustment far greater than any readily available system on the market, again – tailored specifically to your vehicle. Not only does this allow you to optimize traction for the highest performance possible while racing – it also gives us the ability so soften things up for a more compliant and comfortable drive on the street. See our FAQ on why “the number of clicks/settings” on a shock or strut does not tell you how much rebound control is available.
When do I need to upgrade my rear shocks/springs?
On an improperly set up suspension - the front end rises rapidly and begins to unload the front tires while the rear squats excessively. This causes significant alignment changes, tire spin, or worse - a porpoising effect where the front and/or rear bounce their way down the track. The latter can result in a “slip then grip” situation or wheel hop (sometimes both) often causing broken parts. If this is the way your car behaves, it’s time to look at upgrading to 529RDS.
Another important consideration is the wheel/tire package you are using. For example, a bias ply drag slick on a 15” wheel will not respond the same as a car running an 18” Hoosier DR2 drag radial. If you go back and forth between setups (track set & street set for example)… or if you intend on changing things in the future, you need the proper adjustment range to take advantage of this and get optimum performance possible with the current set installed on your car.
What are my options?
Option 0 - Fix the foundation
Prior to upgrading your rear shocks, at a minimum, the rear trailing arm and inner lower control arm bushings should be upgraded. As the bushings get compressed and spring back, they cause significant camber and toe changes in the rear. This contributes to wheel hop and loss of traction. To help address ths we recommend JXB Performance spherical bearings that are available HERE.
Option 1 - Stiffer rear springs
We offer a spring upgrade which is available HERE. While this works well to a point - there are limits. If you go too high in spring rate, the shock will not be able to stop the rear of the car from bouncing back up. We have seen this on cars with stock shocks, as well as with several aftermarket shocks. The reason for this is that many of the current offerings do not have enough dampening ability (see the link above). The net is that the compression control is too weak to control the hit, and/or or the rebound control is insufficient - thus not slowing the suspension as it returns to its normal ride height.
Option 2 - The 529RDS
The 529 drag shocks, coupled with a properly matched and tunable spring system, is the next step up from a simple spring upgrade. We recognize that a full suspension is not an option for all, so we are offering the 529RDS as the first step to improving traction and going faster. This is our entry level solution, however, for many “straight line racers” - this will be enough to get the job done.
Option 3- A full drag specific suspension
The best option is managing the front rise with our drag specific struts combined with the 529RDS. The competition suspension systems are available HERE.
What’s included?
Setup and basic tuning support to help you dial in your suspension.
One pair of monotube rear shocks with high pressure nitrogen pre-charge
Optimized valving for Drag and Roll Racing use:
Independent compression and rebound adjusters
Custom valving and configurations are available, please call for details
Matched spring packages with spring rates per application
Standard spring rates:
Track/high HP Drag configuration: 650 lb/in springs
Street use baseline: 550 lb/in springs
Custom spring rates and valving available at time of order for no additional charge
A tunable bump stop system for adding spring rate as needed
Optional Mag Ride/DCC delete kit
If your vehicle has factory Magnetic Ride or DCC you will require cancellers
If you desire a custom configuration including spring rates, custom valving or other options please contact 529 innovations for recommendations.
Ultimate Performance Nissan GTR coilover shocks utilize JRi Shocks’ double adjustable damper technology. This coilover suspension package enhances the performance of the Nissan GTR platform. Not only can you get the stance you have always wanted, but we have complemented that with superior handling. Ultimate Performance Nissan GTR coilover shocks allow you to drive faster through the corners on a winding road or the track, and gives you quicker response and feedback on an autocross. This package will give you what you need and more. UP custom valves JRi Shocks, specifically tuning them to compliment the horsepower for your GTR. JRi Shocks are race proven dampers, utilizing the same racing technology for your performance car. These nitrogen charged, mono tube, double adjustable shocks provide superior handling and performance to your ride.
The front and rear shocks are direct bolt in pieces utilizing Hyperco springs. The Hyperco springs eliminate spring sagging and the need to re-adjust ride height and corner weights. The use of thrust washers will maximize grip by taking the friction out of the springs as they compress. The JRi Shocks provide the largest range of adjustment on the market. This adjustment range is ideal for tuning your shocks to the track and any track condition.
On the front, we designed our own upper and lower mounts. The upper mounting plate uses a FK teflon lined bearing to reduce friction and eliminate bind throughout suspension travel. For easy shock adjustments, both adjusters are located at the top of the shocks inside the engine compartment. The lower mount has been CNC machined from 7075 billet aluminum for strength.
The rear shocks have been inverted to upper eyelets minimizing friction as a true coilover, no longer running the stock divorced shock and spring package. This keeps the shock and the spring running with the same motion ratio. The stock upper mount has been replaced with an aluminum mounting plate and clevis. The clevis allows us to use a high misalignment Teflon lined bearing for maximum articulation while reducing friction and eliminating bind throughout suspension travel.
Shock adjuster tool and spring preload tool included.
Available for Road Racing or Drag Racing
Made in America.
Related products
These aren’t your typical “off the shelf damper”. The Ultimate Performance dampers are professional motorsport dampers designed and tested specifically for the R8 that is also 100% street friendly.
See the Damper FAQ for additional details.
The rear lower control arm bushing works with trailing arm to hold the rear alignment, and transfer cornering forces to the tires. Like the trailing arm bushing, it is extremely flexible under load, causing alignment to vary under acceleration, braking, and cornering and resulting in a lag between driver inputs and vehicle response. The spherical upgrade increases the precision and responsiveness of the rear end:
Inspires more confidence in corners
Delivers better road feel and feedback
Holds alignment under load
Does not bind
Eliminates random oscillations to increase grip
What’s Included
2 spherical rear lower control arm inner bushings with motorsport-grade PTFE-lined spherical bearings
FK WSSX10T bearings are standard, optional upgrade to Aurora PWB-10T bearings
Both options feature a stainless steel ball and race and bonded PTFE liner
Core Exchange Program
The JXB Spherical Rear Lower Control Arm upgrade is designed to be pressed into the factory rear lower control arms. Typically this is done with an H-frame hydraulic press. Don’t want to deal with it? We’ll press them in for you. We’ll send you a pair of factory arms completely assembled with our bushings. Just install them and send us back your original arms for a $225 core refund. Just select the core exchange option.
The rear trailing arm bushing is the weakest point of the rear suspension. It is extremely flexible under load, causing alignment to vary wildly under acceleration, braking, and cornering. The spherical upgrade increases the precision and feel of the rear end:
Inspires more confidence in corners
Delivers better road feel and feedback
Holds alignment under load
Does not bind
Eliminates random oscillations to increase grip
What’s Included
2 spherical trailing arm bushings with motorsport-grade PTFE-lined spherical bearings
FK WSSX10T bearings are standard, optional upgrade to Aurora PWB-10T bearings
Both options feature a stainless steel ball and race and bonded PTFE liner
Core Exchange Program
The JXB Spherical Trailing Arm Bushing upgrade is designed to be pressed into the factory trailing arms. Typically this is done with an H-frame hydraulic press. Don’t want to deal with it? We’ll press them in for you. We’ll send you a pair of factory arms completely assembled with our bushings. Just install them and send us back your original arms for a $150 core refund. Just select the core exchange option.
The front lower control arm bushings are responsible for maintaining the alignment of the front end under all driving conditions. The factory bushings are soft and flexible, causing unwanted toe-in and camber loss during braking and turning. The spherical upgrade increases the precision, responsiveness, and feel of the front end:
Inspires more confidence in corners
Delivers better road feel and steering feedback
Holds alignment under load
Does not bind
Eliminates random oscillations to increase grip
The JXB Front Lower Control Arm Upgrade is the only kit to replace both factory bushing locations with precision motorsport grade PTFE-lined spherical bearings for a no compromise front end solution.
Caster-Correcting Option
Choose the caster-correcting option to receive our offset rear bushings, which increase caster by approximately 1°. The increase in caster increases much-needed front end grip by increasing negative camber on the outside wheel and decreasing negative camber on the inside wheel during cornering (basically leaning the wheels into the turn). Please note that the the caster correction does push the wheel slightly forward in the wheel well which may cause tire clearance issues on aggressively stanced or lowered cars.
What’s Included
2 spherical front lower control arm bushing kits with motorsport-grade PTFE-lined spherical bearings
FK WSSX10T bearings are standard, optional upgrade to Aurora bearings
Both options feature a stainless steel ball and race and bonded PTFE liner
Core Exchange Program
The JXB Spherical Front Lower Control Arm upgrade is designed to be pressed into the factory front lower control arms. Typically this is done with an H-frame hydraulic press. Don’t want to deal with it? We’ll press them in for you. We’ll send you a pair of factory arms completely assembled with our bushings. Just install them and send us back your original arms for a $200 core refund. Just select the core exchange option.
Adjust camber in the rear of many popular VW and Audi models ±3 degrees with this fully adjustable rear camber arm from SPC. The forged steel arm and double threaded adjuster offer the strength and on-car adjustment needed for the track or simply getting tires back to factory specifications. SPC's arm uses bonded bubber bushings to maintain factory noise, vibration, and harshness (NVH) values. Use the included bracket to properly secure the factory ABS wire.
The arm is sold each and can be used for either the right or left hand side. Be sure to order two kits if you need adjustment on both sides.
Torque Solution Spherical Bearing Rear Toe Link Kit
Applications: Volkswagen Golf/GTI/Golf R MK7, Audi A3/S3 8V, TT/TTS MK3 (MQB)
Torque Solution Rear Toe Links will help restore the proper suspension geometry for lowered vehicles. The factory control arms do not have the adjustment range needed to compensate when lowering vehicle. This results in poor tire wear and an insufficient contact patch. This kit will provide the additional adjustment needed. These work great for street and track use and do not transmit harsh vibration thru the vehicle.
- 6061-T6 Billet Aluminum
- Black Anodized w/ Torque Solution Logo
- High Quality FK Spherical Bearing Rod Ends
- Sold as a pair
- Limited Lifetime Warranty
SuperPro Alloy Control Arm Assemblies deliver more caster, camber and eliminates unwanted flex. Gain of up to 1° caster and .25° camber are typical.
Fitted with the SuperPro DuroBall rear bushing for minimum deflection and maximum arm control.
Installation Tip:
Care needs to be taken with aggressively lowered vehicles with non standard tyre and wheel packages to avoid tyre/guard contact.
For those looking for better bushings and not wanting to upgrade to a spherical bearing we offer SuperPro poly bushings. Please not that these are not recommended for hard core track use. If you compete with your car we recommend going with the JXB Spherical setup that can be found here.
SuperPro has over 40 years of experience within the suspension industry and is supported with a dedicated Research and Development Team. Like most of SuperPro’s products, all bushings are made on site in Australia. This gives SuperPro a competitive edge over all other aftermarket bushings brands. SuperPro ensures greater quality at both manufacturing and engineering endpoints, offers more advanced bushing designs, have extremely fast product turnaround, have an extensive QA process, and can get product to market much faster than all competitors.
Installing SuperPro Polyurethane Bushings into your vehicle will achieve several benefits including:
Correcting or maintaining steering geometry of the vehicle
Better handling
Increased safety
Improved tire wear
Improved fuel efficiency
Enhanced vehicle performance
Please note that not all bushings are currently available and many are in limited supply due to COVID-19 shortages. If you see an item without a price we will contact the manufacturer and determine availability and current pricing
Bushings come 2 per package to fit both the left and right side of the vehicle.
Adjustable camber plates and spring kits co-developed and tested on our class winning 2017 Audi RS3. They are available in a variety of configurations delivering superior performance for a variety of applications.
These adjustable camber plates available in multiple configurations.,
Key Benefits:
Ideal for use on dual purpose cars
Fully adjustable WITHOUT removing the suspension
Low profile design allows for up to 3.5 degrees of negative camber when paired with Whiteline or TTRS adjustable ball joints.
Oversized American spherical top bearing allows for suspension movement without binding
Fits entirely within stock sheetmetal with no cutting or trimming (when used with factory suspension)
Fully rebuildable
When adding the item to your cart you will be prompted to select your desired options including the dome profile, strut type, spring diameter.
Customer testimonial:
”Not only was I able to get additional camber over my previous camber plates I was able to even out the camber on both sides. The reduction in NVH when going from another manufactures fixed camber plates to these was an unexpected benefit”
Whiteline offset strut tops allow for extra negative camber and positive caster to improve steering response, steering feel and reduced movement to ensure wheel alignment stability through a high quality spherical bearing. Perfect for the high performance street or track day weapon, providing improved tyre life and extra grip during high speed / high load cornering. Providing an addition +0.5 Deg of caster / -1.0 Deg of camber.
1 Degree Extra Camber built into the top mount
For those looking for a fixed camber plate we offer the SuperPro camber plates. These are perfect for spirited back road drives or for the user wanting to get a bit more out of their stock suspension. If you are going to track your car we highly suggest stepping up to the Ground Control camber plates.
Installations instructions can be found here.
As we continue to refine and test the capabilities of the MQB platform we have found that, in the right applicatoin the rear magride shocks can tolerate more spring pressure than previously thought.
Details:
These are intended for “straight line” focused cars and not recommended for “canyon carving” auto X or road course use.
Includes 600 lb/in rear springs, adjusters and take up springs (other rates available based on customer request)
Ride height adjustment from 0-1.25” drop
Also Fits: MK7 / MQB / A3
Helper springs now included in all configurations.
Adjustable camber plates and spring kits co-developed and tested on our class winning 2017 Audi RS3. They are available in a variety of configurations delivering superior performance for a variety of applications. Additional details about the development and configuration can be found at the bottom of the page.
Details:
Standard rates are 375Front/430Rear
Custom configurations can be specified when adding to cart
Ride height adjustment from 0-1.25” drop
Adjustment range will will vary based on spring rates, camber plate design and any other items that impact the stack height.
For those looking for a simple solution to lower your car but keep the mag ride functionality we offer the Eibach Pro kit for the 2017-2021 Audi RS3.
Details:
Lowering specs:
0.7” (18mm) Front
0.5” (13mm) Rear
Tested with factory dampers.
High Performance Handling and Aggressive Good Looks.
Lower Center of Gravity.
Stop Quicker Corner Faster
Progressive Spring Design for Excellent Ride Quality.
Million-Mile Warranty
IMPORTANT NOTES - For use on vehicles running the 529Innovations suspension. Adjustable Extra Heavy Duty
Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.
IMPORTANT NOTES - Suits AWD models. Suits models with control arm link mount. Adjustable Extra Heavy Duty
Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.
See Fitment details below prior to ordering
IMPORTANT NOTES - Adjustable Extra Heavy Duty
Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.
IMPORTANT NOTES - Adjustable Extra Heavy Duty
Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.

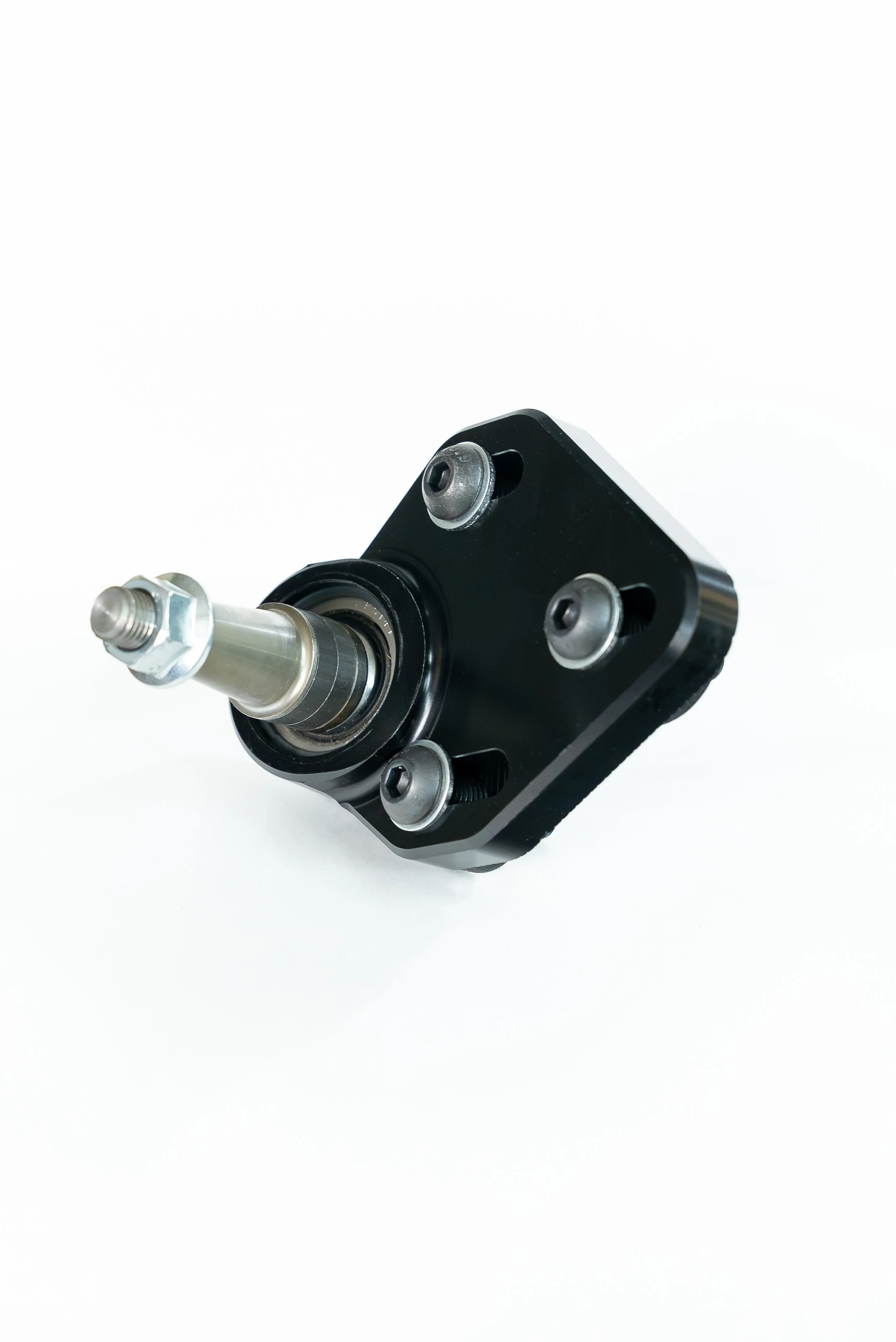

IMPORTANT NOTES - Reduces roll/bump steer - essential for lowered cars.
A must for lowered vehicles, Whiteline roll center and camber adjusting correction kit, is designed to correct roll-center geometry using specially engineered ball-joints, whilst at the same time allowing fine tuning of camber settings with up to ½ a degree of negative camber gain, perfect for track days and spirited driving!
Raising the front roll-center (along with negative camber) results in a substantial increase to front roll resistance and a significant reduction in suspension compression on the outside front tire during cornering. The result is more even weight distribution and improved tire contact ultimately improving front end grip, cornering speeds and tire life when driving the vehicle to it’s potential.
Achieve perfect balance and precise tuning with these vehicle specific Whiteline Sway Bar Kits. Each kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation.
BWK019 is for 4WD models and is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 26mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar
BWK002 is for FWD a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 24mm 3 point adjustable front sway bar and 24mm 3 point adjustable rear sway bar.
See Fitment Details below prior to ordering
Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tires thereby increasing cornering grip and improving outright performance. This Whiteline 24mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tire wear without affecting ride quality or comfort.
See fitment details below prior to ordering
Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tires thereby increasing cornering grip and improving outright performance. This Whiteline 24mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.
If you are looking for increased cornering capabilities with decreased body roll, Roll Control sway bars are the answer!
By being adjustable the Sway bar rates can be increased between 30-50% over OE sway bars by simply changing the end link position on the sway bar.
WARRANTY: 3 Year / 60,000Kms
Unitronic Software
Unitronic Performance Software
Engineered with Strict Industry Standards
Extensively Tested Under Various Driving Conditions
Multiple stages available to meet your specific fuel and power requirements
Full details on all stages as well as current required hardware and companion software can be found here by selecting your appropriate vehicle platform.
Full Product details available HERE, all prices include the required $1000 unlock charge, A core exchange is available if desired ($1500 refundable deposit billed separately after order placed)
(Accompanying hardware packages will be published soon)
Engineered with Strict Industry Standards
With over 10 years of experience with Bosch and Siemens engine management systems and calibrations, Unitronic is able to utilize its expertise, industry leading tools and equipment to ensure an optimal calibration; delivering maximum performance, while maintaining complete OEM-like reliability and drivability.
Extensively Tested Under Various Driving Conditions
Development begins using Unitronic’s in-house Maha Chassis dyno housed in an environmentally controlled cell; closely monitoring a plethora of operational data, utilizing industry leading calibration tools and resources. Beta calibrations are then tested in street and track scenarios, using multiple cars under various driving conditions. This engine calibration strategy ensures Unitronic Performance Software delivers maximum performance, OEM-like drivability and reliability anywhere in the world. Unitronic Performance Software is only released to its Clients once development is thoroughly completed in accordance to Unitronic’s strict standards.
Factory Safety Limiters Retained
OEM “fail safes” are retained within the ECU calibration. Close monitoring of all operation parameters ensures that engine operation stays within factory components limits, resulting in reliability.
Optimized Responsiveness, Smoothness, Drivability, and Comfort
Unitronic’s ECU calibrations are engineered to improve engine response and reduce low-end lag. Unitronic’s Performance Software has gained worldwide recognition and is well known for its broad powerband, with smooth power delivery, maximizing responsiveness and “area under the curve”, under normal and hard acceleration.
Optimized Maximum Output
Unitronic’s ECU Calibrators deliver the maximum power output while staying within the operational limits of the factory engine and drivetrain components. Specifically, this results in the highest engine performance without sacrificing the reliability of the engine, turbocharger, or other engine and drivetrain components.
Power Delivery Perfectly Optimized Throughout the Power Band
Aligned with the OEM strategy, the calibration is designed to offer a large flat torque plateau to provide a smooth and linear power band. Maximum torque output is achieved sooner and maintained longer which creates a broader torque plateau and greater area under the curve. This results in an improved acceleration and optimal engine operation.
Improved Fuel Efficiency
Optimized timing and injection in cruising condition allows for an improved fuel efficiency, under normalized driving conditions.
Ignition Timing Precisely Calibrated for Higher Octane Fuel
Engine calibration optimized to take advantage of higher fuel quality to extract maximum energy from the combustion. Therefore, when using a higher octane fuel, more power and better fuel efficiency will be achieved.
Speed Governor Removed
Vehicle speed limiter within ECU is removed. (Subject to transmission rotational speed limit.)
Description
Unitronic Stage 1 TCU Software
Installation
Flashed directly through the (OBDII) Diagnostic port of your vehicle (10-15 minutes).
UniCONNECT+
This vehicle has added support through UniCONNECT+ which allows you to program your own vehicle right in your own garage. Learn More
Features
Engineered with Strict Industry Standards
Extensively Tested Under Various Driving Conditions
Optimized Responsiveness and Drivability
Optimized Smoothness and Driving Comfort
Optimized "Sport Mode"
RPM Limiter Increased to 6700
Launch Control Increased to 3400Engineered with Strict Industry Standards
Unitronic Stage 2 TCU Software
DSG Software Precisely Engineered to run combined with a Unitronic Stage 2 and up ECU Performance Software.
Installation
Flashed directly through the (OBDII) Diagnostic port of your vehicle (10-15 minutes). using UniCONNECT+
Features
Engineered with Strict Industry Standards
Extensively Tested Under Various Driving Conditions
Optimized Responsiveness and Drivability
Optimized Smoothness and Driving Comfort
Optimized "Sport Mode"
Automatic Downshifting upon deceleration
Kick Downs Removed
RPM Limiter Increased to 7000
Launch Control Increased to 4000
Includes all Stage 2 tune variants and all lower software stages as well.
Unitronic FLEX fuel enabled ECU Performance Software Calibrations are available for various platforms allowing for seamless transitions between 100% gasoline to 85% ethanol and anything in between, without requiring an ECU reflash.
This FLEX enabled Software is available for an additional fee and it covers all lower stages up until your highest purchased stage as well. UniFLEX Hardware is required in order to take advantage of these FLEX enabled calibrations. Please check the Unitronic website for tune compatability.
Performance Software for your ECU Box Code is subject to availability.
Unitronic Intake with Air Duct and Unitronic Intercooler are required to achieve advertised power figures.
Calibrations engineered to maximize clutch life in vehicles equipped with MQ350 transmissions are also available to help you enjoy increased performance while minimizing clutch wear.
Performance Software for your ECU Box Code is subject to availability.
Recommended Hardware
Unitronic Performance Software
Engineered with Strict Industry Standards
Extensively Tested Under Various Driving Conditions
Multiple stages available to meet your specific fuel and power requirements
Full details on all stages as well as current required hardware and companion software can be found here by selecting your appropriate vehicle platform.
UNITRONIC STAGE 1 : 297HP / 346LB-FT
STOCK POWER: 220HP / 258LB-FT
UNITRONIC STAGE 1+ : 310HP / 347LB-FT
STOCK POWER: 220HP / 258LB-FT
UNITRONIC STAGE 2 : 337HP / 370LB-FT
STOCK POWER: 220HP / 258LB-FT
UNITRONIC STAGE 2+ : 381HP / 377LB-FT*
STOCK POWER: 220HP / 258LB-FT
We strongly recommend purchasing the Uniconnect+ cable for all tunes so you can flash at home.
https://www.529innovations.com/unitronic-software/p/unitronice-uniconnect
Full Details , specifrications and hardware requirements on all stages can be found here (will open in a new browser window):
https://www.getunitronic.com/ecu-tuning/Audi-TT--20L-TSI-Gen3-MQB-2015-2016-stage1
Accessories-Swag
Brakes
C8 Corvette Brake Pads-Available Now
Note regarding cars with CCB rotors:
Compounds up to the XP12 are compatible with cars running Carbon Ceramic rotors
Brake pads for your Mazda Miata Calipers-Available Now call or e-mail for pricing if not listed
All compounds up to and including XP12 are compatible with Carbon Ceramic Brakes (CCB)
340mm Kits for Mk7 Golf, Audi S3 and TTS now available!
529Innovations is proud to announce the the expanded line of Caliper Conversion Kits (CCK) for the MQB Platforms including the Golf R, RS3 and TTRS. These kits offer proven street and track braking power for those of us that want a true multi purpose car.
Kits are assembled upon order and typically ship in 1-2 weeks.
Due to shortages and supply chain issues availability of certain colors and/or calipers may experience extended lead time. If your order is urgent please contact us to verify current lead times.
Features include the following:
Track proven Wilwood Aero6 heavy duty 6 piston calipers with hard coat anodizing or multiple color options
Thermlock® “Racing” calipers available (Details about Thermlock® pistons can be found here)
DOT Compliant Stainless Steel brake lines and all required fittings
Premium Grade 10.9, grade 8 and stainless steel hardware as required
Included with every brake kit (selections can be made when adding to your cart
1 set of pads (1521 compound unless otherwise specified)
1 liter of Motul 600 or Castrol SRF
529Innovations spec Carbotech brake pads provide:
Optimized pad area for improved stopping power and fade resistance
More pad volume for longer pad life and lower maintenance costs vs “other” small brake/drag kits
The Modular Billet Caliper Bracket (MBCB) system allows simple rotor swaps without having to bleed the system when going to 17” wheels.
310mm and 330mm Small rotor kits:
Including a 310mm rotor option for Enkei 17” x 9” ET35 RPF1 wheels that has been verified on a 2018 TTRS and a 2017 RS3 (17” x 9” ET45 RPF1 will require the use of a spacer)
Include 32mm thick (1.25”) rotors for increased thermal capacity and fade resistance as compared other small brake/drag kits
Rotors feature Electrolysis Nickel plating for corrosion resistance
May require modification/removal of the factory dust shield.
Significant weight reduction:
16 lb total weight for 370mm kit (Caliper upgrade + Girodisc rotors)
35 lb total weight reduction for 310mm rotor kit
30 lb total weight reduction for 330mm rotor kit
Can be used with Stock (Iron or CCB), AP Racing, or Girodisc rotors
Rotor sizes ranging from 310mm (12.19”) up to 380mm (15”)
380mm Iron and 355mm CCB rotor details and configurations coming soon
For rotor and caliper options please see the selection matrix at the bottom of the page here
Low Profile Brake Kits for Mk7 Golf, Audi S3 and TTS now available!
529Innovations is proud to announce the the expanded line of Caliper Conversion Kits (CCK) for the MQB Platforms including the Golf R, RS3 and TTRS. These kits offer proven street and strip braking power for those of us that want a true multi purpose car.
Kits are assembled upon order and typically ship in 1-2 weeks.
Due to shortages and supply chain issues availability of certain colors and/or calipers may experience extended lead time. If your order is urgent please contact us to verify current lead times.
Features include the following:
Wilwood Forged Superlite 6 piston calipers with hard coat anodizing or multiple color options (specify color choice on checkout)
Standard colots include Type III Anodized, Red or Black
Contact for details on custom caliper colors
Significantly more wheel clearance than other 6 piston calipers
DOT Compliant Stainless Steel brake lines and all required fittings
Premium Grade 10.9, grade 8 and stainless steel hardware as required
16mm thick pads vs 12mm thick pads
More than 30% more pad volume for longer service life and improved fade resistnace
Longer service life and fewer brake pad changes
Included with every brake kit
1 set of pads (Wilwood BP10 compound unless otherwise specified)
Optional Carbotech brake pads
1 liter of Motul 600 or Castrol SRF
Optional Electrolysis Nickel plating for superior corrosion resistance-call for pricing
Multiple rotor options:
Diameters range from 11.75” to 12.19” (298mm to 310mm)
Rotor thickness options from .81” to 1.25” (20.5mm to 32mm)
32mm thick (1.25”) rotors offerincreased thermal capacity and fade resistance as compared other small brake/drag kits
Plain face or optional slotted rotors
Will require modification/removal of the factory dust shield
Significant weight reduction over stock brake system:
Detailed specs coming soon
Corvette Brake Pads-Available Now call or e-mail for models and pricing if not listed
Pontiac Fiero Brake Pads-Available Now call or e-mail for models and pricing if not listed
All compounds up to and including XP12 are compatible with Carbon Ceramic Brakes (CCB)
VW Golf Brake Pads-from Carbotech and Pagid available now call or e-mail for pricing if not listed. Please note that due to limited stock Pagid pads are subject to availability and may be subject to a backorder.
For the MK8 GTI the Carbotech Race pads do not include spring clips. The purpose of the clips is to push the pad toward the outer edge of the rotor. We do not recommended when runing aftermarket 2 piece rotors without modifying the backing plate, this ensures that the pad will clear the rotor hat. The 1521 compound includes clips and does not ahve this issue. For the GTI applications we suggest running Pagid RSL29 Front pads.
The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 24.0lbs vs. 27.4lbs for the stock units and the rear rotors are approx 12.9lbs vs 15 lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced per pair.
The Girodisc system is a direct replacement for the OE disc, no modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency.
The Girodisc front rotors are approx 20.3lbs vs. 23.8lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response. The Girodisc Rear rotors are approx 13.0lbs vs. 15.3lbs for the stock units, this reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc. The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
The Girodisc system is a direct replacement for the OE Iron disc with the addition of our provided caliper spacers. Our rotor is slightly larger than the OEM rotor at 380mm versus 365mm providing greater braking force and cooling capacity.
The Girodisc iron rotor conversion is a direct replacement for the OE carbon ceramic disc with the addition of our provided caliper spacers. Our rotor is slightly larger than the OEM rotor at 394mm versus 380mm.
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 12 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Safety Equipment
We offer both teh Rev X Lite and Carbon head and neck restraint / frontal head restrain
Quick release helmet hardware is included!
Currently available with accommodations for 3" wide belt guides that work with 3" or 2" wide shoulder belts.
"Does it work with a 3 point harness?"
The REV X has been shown to reduce neck loads under impacts when tested to the NHTSA FMVSS208 standards using a 3 point belt. We always recommend you race with at least a 5 point harness for safety, but we understand that in some circumstances a 3 point is all that is available, and the REV X will add an extra layer of protection.
The REV X Lite
Made in the USA from a carbon fiber composite material, the new REV X Lite adds an extra element to driver comfort. The X strap system holds the device securely in place while driving, and also helps keep it where you want it while getting in or out of the vehicle. The straps are easily adjustable to make personal fitment easy, and the double adjustable tactical buckle in front is easy to use. The vertical chest straps have some adjustment to fit men and women both easily.
SIZING:
Available in 2 sizes: 3" chassis with Medium / Large harness, and 3" chassis with XL+ harness.
The 3" chassis is a "One size fits most" unit that fits most adults. See measurements on the sizing chart for more details.
The M/L will fit most adults, and the XL+ will fit adults that would typically wear an 2XL t-shirt or larger.
Weight: 2.1 lbs including harness and tactical buckle
The REV X Carbon
Hand made from carbon fiber and lightweight materials, the new REV X adds an extra element to driver comfort. The X strap system holds the device securely in place while driving, and also helps keep it where you want it while getting in or out of the vehicle. The straps are easily adjustable to make personal fitment easy, and the double adjustable tactical buckle in front is easy to use. The vertical chest straps have some adjustment to fit men and women both easily.
SIZING:
The M/L harness will fit most adults
The XL+ harness will fit adults that would typically wear an 2XL t-shirt or larger
The YT harness will fit youth and teens. The YT harness will not fit on the adult chassis.
Weight: avg. 1.8 lbs including harness and tactical buckl
Zestek SCX quick release removable racing steering wheel hub
The all-new Zestek SCX Racing Steering Wheel Hub for Audi represents the next evolution of driver interface technology. Completely reimagined from the ground up, the SCX blends motorsport-inspired engineering with refined design to deliver a sleeker, more connected driving experience.
Every detail has been reconsidered: from materials and ergonomics to electronics and software. The result is a hub that doesn’t just connect your controls, but become an extension of you as the driver.
Key Features & Upgrades
Full OEM Function Support
Communicate seamlessly with almost any vehicle using Zestek’s proprietary OEM Adapter. Installable independently, it gives your SCX full OEM-level functionality over your steering wheel controls—everything you need, no compromises.VeloLink 2.4G Wireless System
Connect up to 6 wireless devices, including OBD modules, with our proprietary VeloLink system. Expandable with multiple VeloLink accessories, your SCX hub can grow as your setup does.Wireless OBD & Real-Time Feedback Lights
Included VeloLink OBD module displays real-time vehicle status with multiple feedback lights. Monitor and control your car directly from your hub for a fully immersive driving experience.VeloLink Wireless Switches
With the VELOSwitch add up to 16 fully customizable control switches wirelessly. From exhaust valving to ESP, PTC, and more—control all essential car functions right from your SCX.Carbon Fiber Composite Front Panel
Built from 50% carbon fiber, the front panel is ultra-light, rigid, and designed with a premium motorsport aesthetic.Pogo Pin Quick Release
CNC-machined for perfect mechanical and digital connection—reliable, secure, and easy to use every time you detach or attach the hub.Custom Dual-Stage Buttons with RGB
Experience precise tactile feedback with dual-stage buttons, paired with 16.7 million RGB colors for ultimate visual customization.V2.0 Magnetic Paddle Shifters
Redesigned for crisp, ultra-responsive shifting, and tested for durability with over 1 million presses without failure. Your shifts, precise and consistent.Steering Wheel Compatibility
Works with most 350mm and 330mm aftermarket wheels (PCD 6x70mm; clearance may be tight). Check our online fitment guides for exact compatibility.
What's Included
1x SCX Racing Hub Unit
1x VELO OBD Unit
1x V2 Quick Release
1x OEM Adapter
1x Adapter Harness
3x Horn Button Blockers
1x USB Connection Cable
1x Hardware bag
1x SCX Sticker Sheet Set
Optional Inclusions
Steering Hub Boss Kit

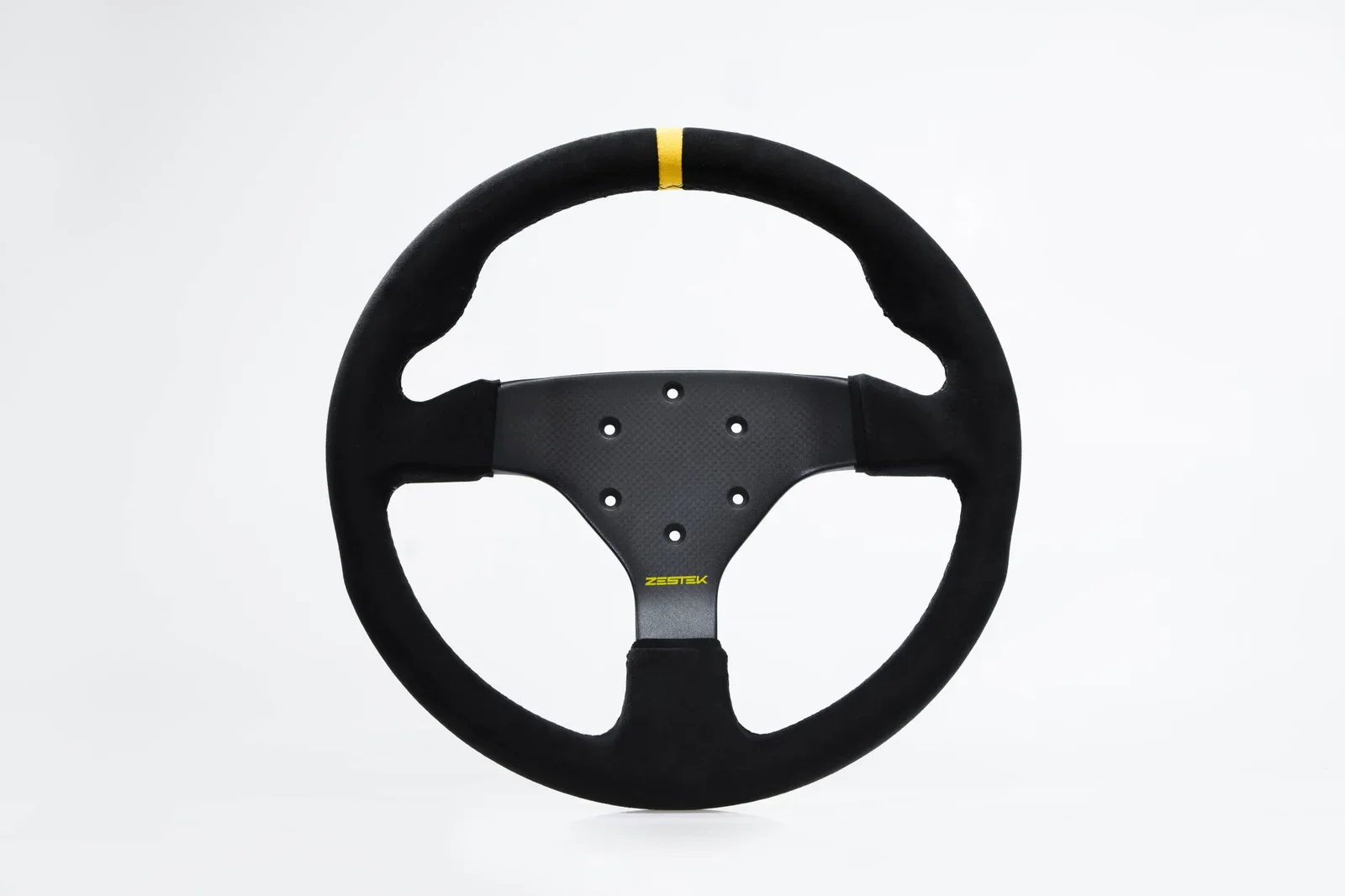

330MM LITE Carbon Fiber Racing Wheel
SCX Color Knobs
Zestek SCX quick release removable racing steering wheel hub
The all-new Zestek SCX Racing Steering Wheel Hub for Audi represents the next evolution of driver interface technology. Completely reimagined from the ground up, the SCX blends motorsport-inspired engineering with refined design to deliver a sleeker, more connected driving experience.
Every detail has been reconsidered: from materials and ergonomics to electronics and software. The result is a hub that doesn’t just connect your controls, but become an extension of you as the driver.
This is control—evolved.
Key Features & Upgrades
Full OEM Function Support
Communicate seamlessly with almost any vehicle using Zestek’s proprietary OEM Adapter. Installable independently, it gives your SCX full OEM-level functionality over your steering wheel controls—everything you need, no compromises.VeloLink 2.4G Wireless System
Connect up to 6 wireless devices, including OBD modules, with our proprietary VeloLink system. Expandable with multiple VeloLink accessories, your SCX hub can grow as your setup does.Wireless OBD & Real-Time Feedback Lights
Included VeloLink OBD module displays real-time vehicle status with multiple feedback lights. Monitor and control your car directly from your hub for a fully immersive driving experience.VeloLink Wireless Switches
With the VELOSwitch add up to 16 fully customizable control switches wirelessly. From exhaust valving to ESP, PTC, and more—control all essential car functions right from your SCX.Carbon Fiber Composite Front Panel
Built from 50% carbon fiber, the front panel is ultra-light, rigid, and designed with a premium motorsport aesthetic.Pogo Pin Quick Release
CNC-machined for perfect mechanical and digital connection—reliable, secure, and easy to use every time you detach or attach the hub.Custom Dual-Stage Buttons with RGB
Experience precise tactile feedback with dual-stage buttons, paired with 16.7 million RGB colors for ultimate visual customization.V2.0 Magnetic Paddle Shifters
Redesigned for crisp, ultra-responsive shifting, and tested for durability with over 1 million presses without failure. Your shifts, precise and consistent.Steering Wheel Compatibility
Works with most 350mm and 330mm aftermarket wheels (PCD 6x70mm; clearance may be tight). Check our online fitment guides for exact compatibility.
What's Included
1x SCX Racing Hub Unit
1x VELO OBD Unit
1x V2 Quick Release
1x OEM Adapter
1x Adapter Harness
3x Horn Button Blockers
1x USB Connection Cable
1x Hardware bag
1x SCX Sticker Sheet Set
Optional Inclusions
Steering Hub Boss Kit
330MM LITE Carbon Fiber Racing Wheel
SCX Color Knobs
OMP offers a full range of steering wheels for all applications.
For most applications the Velocita is the right choice, if you want the wheel to sit closer then choose the WRC wheel
OMP Velocita Flat Face Steering Wheel Suade 350mm (13.8”)
The Velocita is a flat, three-spoke steering wheel featuring a medium (25x30mm) grip. Measures 350mm (13 3/4") in diameter with no dish. Covered in black suede leather with yellow stitching and a yellow centering stripe at the top of the rim. Includes horn button.

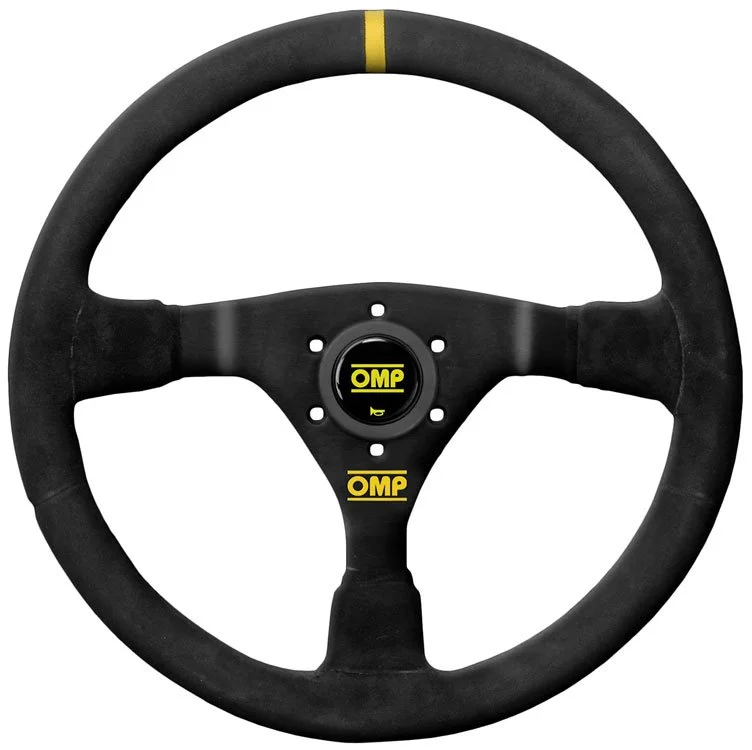

OMP WRC Mid-Depth Steering Wheel, Suede, 350mm (13.8")
The three spoke wheel has a medium dish depth (65mm front to back), and the round-section grip is 30mm diameter. The wheel easures 350mm (13 3/4") outside diameter. Covered in black seude leather with yellow stitching and a yellow centering stripe at the top of the rim. Includes horn button.
Lightweight. Ultra-Strong. Race-Ready.
The Zestek 330 LITE Carbon Fiber Racing Wheel, a racing steering wheel engineered for maximum strength, minimal weight, and unparalleled driver feel.
Key Features
T700 Carbon Fiber Construction
Hot-pressed for superior stiffness and durability, the T700 carbon fiber delivers race-grade performance and a motorsport-inspired aesthetic.
Strength Meets Lightweight
Three times stronger than a steel wheel yet weighing only 460g, the 330 LITE is half the weight of traditional racing wheels—improving response, reducing fatigue, and enhancing control.
Premium Alcantara Grip
Wrapped in high-quality Alcantara, the wheel provides exceptional comfort, tactile feedback, and superior grip under the most intense driving conditions.
Dual Button Integration
Includes two OTTO Mil-spec Buttons mounted on a 6061 Aluminum Plate, allowing easy access to wiring in a horn or other switched controls.
What’s Included
1x 330MM LITE Carbon Fiber Steering Wheel
1x 6061 Aluminum Button Mount Plate
2x OTTO Mil-spec Buttons
1x Hardware Bag
1x Helmet Sticker Sheet
Lightweight, adjustable aluminum seat bases.
All Bases include the following:
1/4” aluminum seat base weighs in at 3.5 pounds (4 pounds with seat belt clevis mount)
Bolt holes pre drilled for Sparco and Tillet sliders
See compatability notes below
Reversible mount to accommodate various seating positions
Direct bolt in for 8V, 8S, Mk7 Golf and Mk6 Jetta platforms (may fit other models with minor modification)
Clevis mount for seat belt
Available in the following finishes:
Bare Aluminum
Black Powdercoat
Custom Color Powdercoat
Carbon look hydrodip finish
Mounts and sliders are listed below.
Taller stand-offs or side mounts are also available for higher seat mounting as needed. Contact us for details
The OMP HTE-R seat features distinctive side head bolsters to help restrain the helmet, while the new breathable cloth upholstery allows perspiration to evaporate for comfort. Fiberglass shell uses OMP side-mount seat brackets (sold separately). Black cloth upholstery with a black fiberglass shell. FIA homologated to 8855-1999.
Available in Standard and XL sizes (scroll down for Seat Dimensions)
Due to the size of this item please contact us for updated shipping charges.

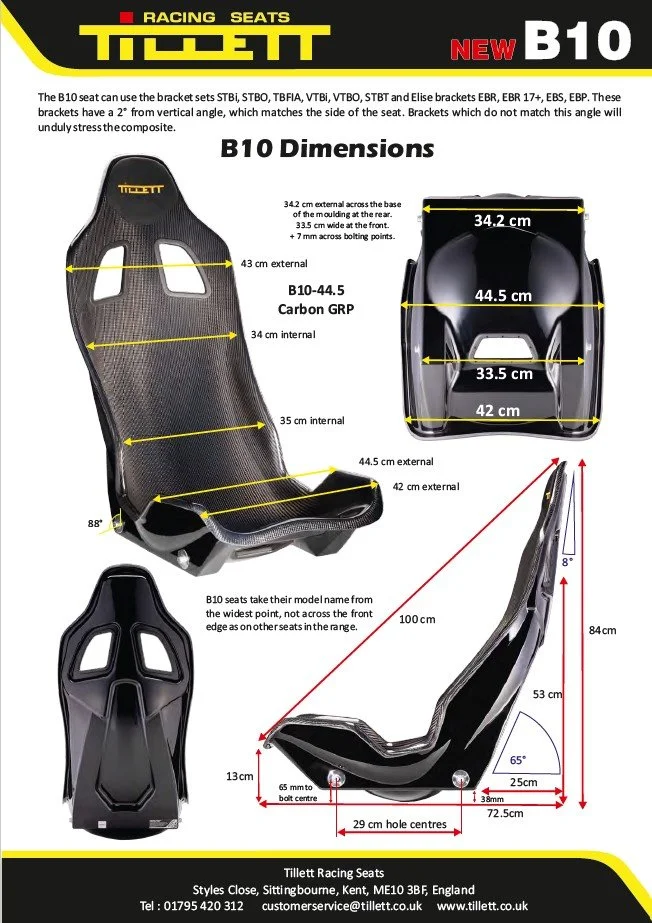

B10 - Carbon front seat
With its contemporary design the B10 seat is stylish, lightweight, rigid and compact. Based on our popular B6 race shape, modified to be more convenient for daily driving.
The B6 has always been a great seat for those that liked a low head position with an enveloping and ultra-supportive shape, but often the race type belt holes were awkward when trying to feed a factory three-point seat belt through.
The B10’s cut away sides allow convenient use of the stock belts with the added benefit that getting in and out of the seat is also easier. However, we have been careful to make sure that the support of the driver is not compromised.
The front of the seat kicks up a little more than the B6, which not only aids drivers with longer legs but also helps if the seat were to be angled to a more upright position.
A more upright seat allows a comfortable arm length in saloon cars, where the steering column cannot be extended, or lengthened towards the driver. The headrest height has been raised over the B6 seat so that a driver with along torso does not run out of headrest support.
The B10 has been given a modern fresh look and although its highly technical laminate is rigid and tough, it weighs only 4.5 kg for the standard B10.
The B10 is also available in the larger B10XL size (call for availability and pricing), weighing approx. 5.4kg with an edges on and off option.
The seat comes complete with a Dinamica® suede covered headrest pad.
The optional suede covered cushion and back panels add 1 kg and are recommended when the car is intended for mainly road use.
The B10 and B10XL can also use a full six-point race harness and is Hans compatible for those with a serious track car.
The seat uses our latest FIA seat fittings to make certain it is mounted securely and can use all of our 2° bracket range.
KEY FEATURES
Saloon car seating angle.
B6 based shape with swept away sides for easy vehicle access and road seat belts.
Strength and rigidity of a twin skin moulding.
B10 weighing 4.5kg and B10XL weighing 5.4kg, weight can vary by 10%.
Choice of high gloss carbon/GRP, or black gloss GRP finish.
Driver is lowered compared to standard saloon seats.
B10 standard suits drivers up to 100 kg and around a 36-inch jeans waist size.
Compatible with road seat belts or race harness and a 20° Hans device (5 or 6 point race harness recommended).
Stainless steel side mounting points.
Dinamica® covered headrest panel included as standard.
Option of cushion and back panels covered in Dinamica® suede.
Body mirroring shape is comfortable without padding.
A great option for open top cars and harsh environments.
Compatible with Tillett 2° side mount brackets.
Designed and manufactured in the United Kingdom.
Compatible Seat Brackets
STBO Bracket Set
TBFIAS
STBI Bracket Set
TEMIRA01 bracket kit
STBT
VTBI
VTBO
Compatible Seat Panels
TP2
TP2H
TP2D
TP3EMIRA
RaceQuip FIA Certified Composite Racing Seats provide the support to hold you firmly in place for increased car control. This seat is certified to FIA 8855-1999 specifications with FIA hologram affixed. The design is suitable for professional racing with it's increased thigh and hip support along with extended shoulder and rib bolsters for extra containment. The shell is a one-piece lightweight, FRP hand-laid composite structure built for strength and durability. The design accommodates all Head and Neck restraints and there are five seat belt guides to handle 4, 5 or 6-point harness sets. The seat bottom and back cushions incorporate energy absorbing memory foam for comfort and safety. The seat material is a black mesh fabric for increased breathability with a more durable smooth covering in high-wear areas. The exposed areas of the shell are a shiny black gelcoat for a great look and easier cleaning. There are four built-in 8mm side mount threaded fasteners (brackets not included). Optional RaceQuip brackets allow the seat mounting to go from 0° Upright position to 30° Layback position. Seats weigh about 18lbs and are available in 15" Medium; 16" Large and 17" X-Large sizes.
Features:
One-Piece Lightweight FRP Composite Shell
Pro Racing Design With Extra Thigh and Hip Support
Integral Shoulder and Rib Bolsters
Accommodates All Head and Neck Restraint Devices
Five Seat Belt Guides Handle 4, 5 or 6-point Harnesses
Energy Absorbing Memory Foam Back and Seat Cusions
Black Mesh Fabric Cover for Breathability
Four Built-in 8mm Mounting Lugs With Bolts
Shiny Black Gelcoat Finish on Exposed Areas
Optional RaceQuip Seat Mount Brackets Allow 0° to 30° Layback
Weighs Approximately 18lbs
To determine the correct size please see the sizing chart on the listing.
Due to the size of this item please contact us for updated shipping charges.
THE B5 - CAR SEAT
Product code: B5-41
The B5 is a versatile seat that is used in many different vehicles. It is designed with a regular saloon car angle and its shape is such that it is perfect for road/track vehicles that use either a standard 3-point seat belt or race harness.
KEY FEATURES
41cm external maximum width at lower leg area.
4.5KG (Weight of seats can vary by 10%).
Side-mounted seat fixing points.
Upright road car position with swept away sides for easy access and unhindered driving experience.
The B5 has a compact exterior and a thin base, which drops the seating dome right on the floor, allowing more head room.
Originally designed to complement the narrow Lotus Elise/Exige platform cars.
The seat is not only exceptionally light but also very rigid, which adds to the handling, feedback and feeling of security.
Suitable for a road seatbelt or race harness.
Designed to be compatible with the Hans-device.
Two front surface finishes available.
Dinamica® covered headrest panel included as standard.
Supportive and comfortable without padding, great option for open top cars.
Optional suede covered cushion and back panel set (Panel set weight is 0.9kg) Recommended for road cars to soften any vibration.
All seat panels are customisable at an additional charge, see product page SP1 or SP2 for more information.
Gel coat colour available on this seat model at additional cost, see SP7 for this add on feature.
Registered Community Design (000922950-0002).
Designed and manufactured in the United Kingdom.
COMPATIBLE SEAT BRACKETS
COMPATIBLE SEAT PANELS
Click HERE for seat dimensions (will open in a new window).
Body Parts and Aero Aids
The V4 chassis mounted splitter is a balance between track and show cars looking for something more durable than a bumper mounted lip, and provides actual downforce. The V4 blade is a durable street style lip that is fully chassis mounted. This can help protect your bumper. It has a 60mm stick-out.
This product ships in 5-7 business days. Made in USA - 2 year warranty.
Product details and install notes:
Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
This will not fit with any front mount/twin intercooler.
If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
Requires drilling four 11mm holes in the crash bar for install.
Trimming the factory splash guard under the bumper is required.
Trimming the auxiliary coolers shrouds, or removing them is required.
Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice. They are height adjustable in 12mm increments.
Please see the additoinal information below for instructions, fitment details and shipping information
529Innovations has partnered with a Midwest based composites manufacturer to bring you bespoke carbon fiber parts that are proudly made in the USA. This is the same manufacturer that produces carbon fiber components for SEMA award winning vehicles by Ring Brothers and was selected to produce Carbon Fiber body panels for Jordan Racing, Vance and Hines and multiple other professional motorsports teams. In addition they produce a variety of other products for companies such as Nike.
Features include:
Less than 8 pounds total weight
40+ pounds of weight reduction on cars with factory sun roof.
While we would like to claim 50+ pounds as posted on various forums and social media that has not been our experience. After weighing all the parts removed from the RS3 we feel that 40+ is a more realistic expectation of the actual weight savings.
5 Ply full carbon construction for the ultimate in stiffness
Click here for a description of why we offer a full carbon fiber roof as standard vs an optional kevlar/carbon hybrid.
2 Stage thermal post cure to eliminate shrinkage and enhance dimensional stability
Full factory flanges to ensure a leakproof bond , eliminate wind noise and flex.
We took no shortcuts on the mounting flanges, after all this is what is holding the roof to the car and keeping it sealed. This is especially important along the sides. What this means is that our roof uses the same rolled over lip as the factory panel. A flat or 90 degree edge would be significantly cheaper to manufacture but we wanted to make no compromises.
Optional colors and weaves available-contact us for options and pricing
All roofs are made to order, please allow 6 weeks for delivery
All roofs are shipped freight or via courier service. Packaging and shipping charges will be calculated and invoiced at time of shipment.
Please contact us for details and shipment options.
Contact us for special package pricing
If you have any issues checking out after placing items in your cart please reach out to us directly at pete@529innovations.com or fill out the form located here
Production parts are in finall assembly. Shipments starting week of May 18th
We are accepting a limited number of pre orders out of the next production run. Ball joints are sold in pairs with all necessary hardware.
Unlock the Front-End Grip Your MQB Chassis Deserves with the RCCA Ball Joint
The MQB platform has earned its reputation as a standout performer on both street and track, consistently punching above its weight and surprising countless people with it's abilities. However, when it comes to front-end grip, enthusiasts quickly encounter two key performance limiting factors: traditional camber plates typically max out between -2.8° and -3.2° of camber and lowered cars suffer from poor roll center geometry. Extensive chassis and tire testing has shown that many modern performance tires deliver their best track performance with even more camber. Depending on the tire/chassis setup, optimal camber can be in the -3.6° to -3.8° range, with some setups benefiting from even more. In addition, many OEM style ball joints fail prematurely due to excessive heat generated by hard track use.
Precision Camber Gains Without Compromise for the ultimate in Adjustability, Durability and Serviceability
The all-new 529 Innovations RCCA (Roll Center and Camber Adjustable) Ball Joints unlock up to an additional 1.8° of negative camber and 1° of additional positive caster in many cases allowing for up to -5.0° of usable camber AND, up to 20mm of roll-center correction. This allows drivers to achieve optimal alignment and improved suspension kinematics. Details on the alignment verification test are documented below.
For the “stance crowd” we have been able to get over -5° of camber when paired with proper camber plates and our upcomming max camber adapters!
Beyond alignment performance, the 529Innovations ball joint is engineered to solve three common issues found on MQB VW and Audi vehicles , durability, “big brake kit” issues and dangerous, on-track alignment changes, resulting from traditional slotted designs slipping under high load conditions.
By replacing the plastic-lined socket with an oversized, commercially available, motorsport-grade spherical bearing, the 529Innovations ball joint significantly improves heat resistance, durability, and consistency in this critical suspension location.
Additional clearance—up to 5mm of additional rotor clearance compared to OEM type designs—helps eliminate interference with many common big brake rotor sizes ranging from 340mm to 380mm.
Large brake packages often create tight clearances at the factory ball joint, leading to excessive heat soak and premature wear. The OEM plastic-lined socket design is especially susceptible to damage under sustained high temperatures.
A two piece design with a positive locking, serrated interface ensures that the camber plate cannot slide, even under the highest of cornering loads.
Features
7075 billet aluminum body that has been heat treated, stress relieved and hard coat anodized
Robust teflon lined spherical bearing with optional, low friction, all metal bearings.
Heavy-duty chromoly billet steel ball joint pin with a proprietary heat treat and finishing process
The spherical bearing and ball joint stud are user serviceable and available as a service item kit without the need to replace the entire ball joint assembly.
Unique two-piece body design with a precision serrated adjustment interface provides a secure camber adjustment of the ball joint
The bottom plate positively locates using the OEM control arm mounting holes , preventing the ball joint from slipping.
Ability to percisely align the vehicle after the addition of of subframe locking collars .
The slotted upper body design is compatible with all control arm designs that use the OEM ball joint mounting pattern, including the 8S (TT/TTS/TTRS) aluminum arms
